How Do I Custom Desired Size Gas Struts?
Apexstone can custom gas struts for any specification less than 1000N and 35 inches, you can ask for a variety of forces and sizes to apply to different applications. For high pressure gas struts replacements, they are widely used in the vehicle industry, using to lift the car front hood and liftgate for any brand of the vehicle including BMW, Mercedes-Benz, Porsche, etc., For low force gas struts, they are suitable for the light door.
1) Select the Ideal Specification from the Dropdown Choices
Our gas struts are made of high quality steel material, which makes the struts more durable. Just tell us the correct information for the lift piston you need, and we can customize the quality gas struts replacement at a favorable price.

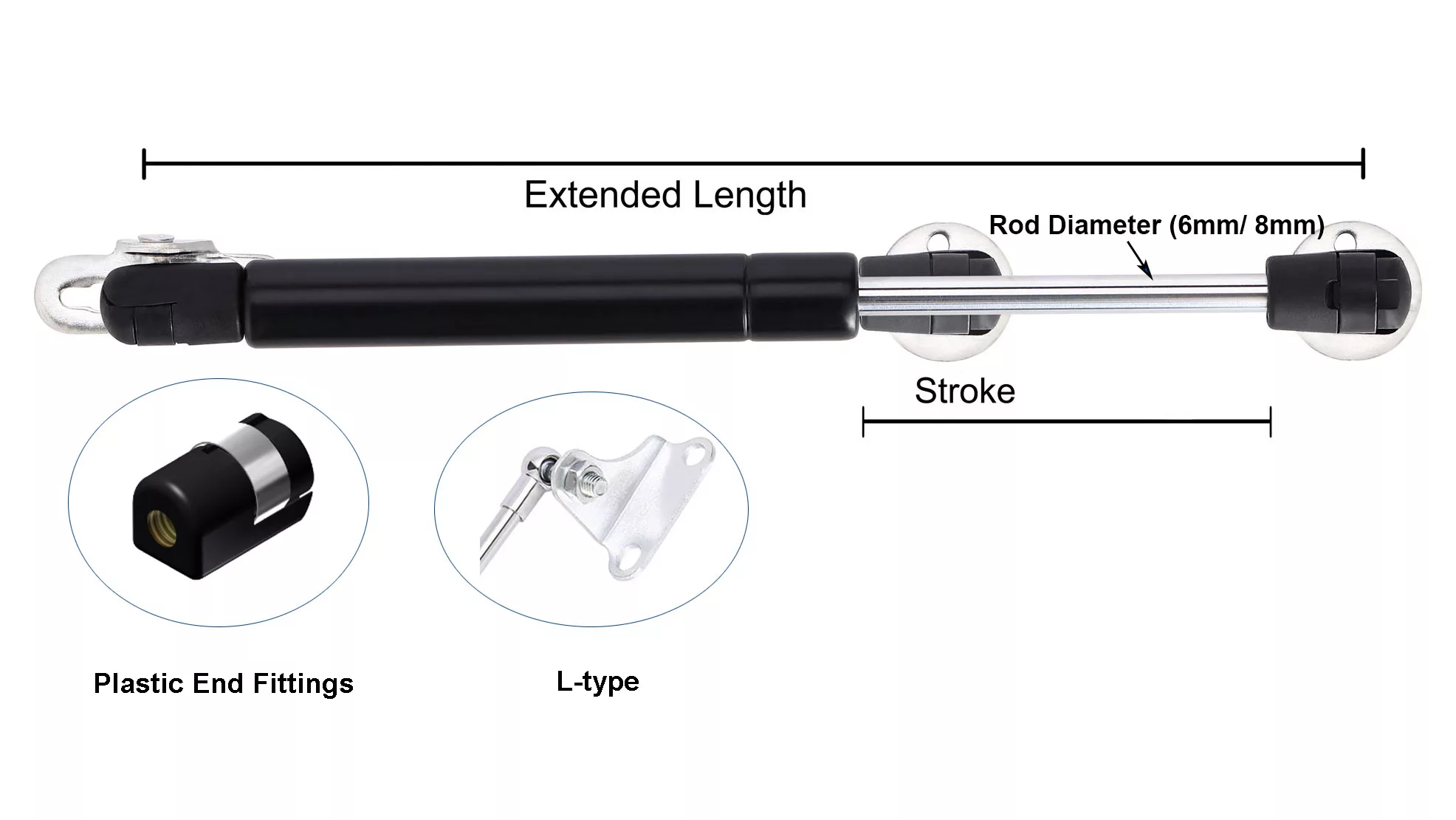

You need to confirm the product specification with us | |
Rod diameter | mm (“) |
Cylinder diameter | mm (“) |
Stroke | mm (“) |
Rod Length | mm (“) |
Force | N |
Material | Steel |
2) You Can Choose “Other” if Your Desired Gas Struts are Not Listed
You can let us know the size of the gas struts you need in two ways:

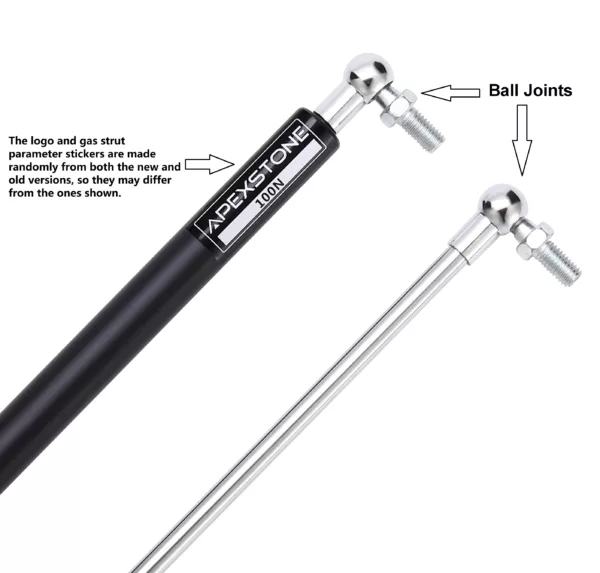

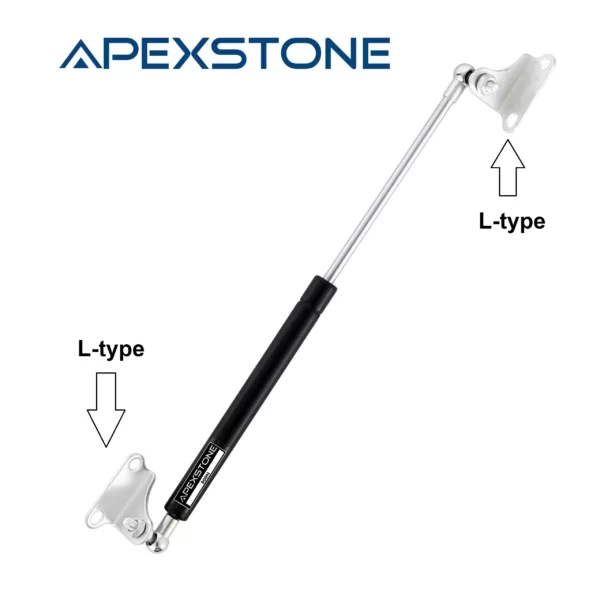

- When you’re checking out, leave a message with details like the force, extended length, stroke, rod diameter, and end fittings type.
- Email [email protected] with the information about the force, extended length, stroke, rod diameter, and end fittings type.

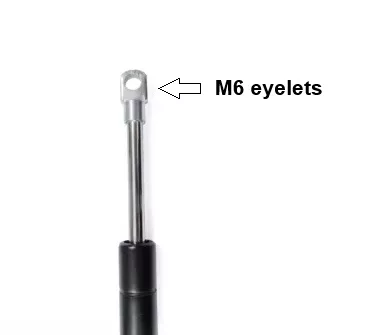

Available Specification for M6/M8 Rod Diameter |
||
Extended Length | Stroke | Force (N) |
150mm/5.91″ | 40mm/1.57″ | 30-500 |
180mm/7.09″ | 50mm/1.97″ | 30-500 |
200mm/7.87″ | 60mm/2.36″ | 30-500 |
220mm/8.66″ | 70mm/2.76″ | 30-500 |
250mm/9.84″ | 85mm/3.35″ | 30-500 |
260mm/10.24″ | 90mm/3.54″ | 30-500 |
280mm/11.02″ | 100mm/3.94″ | 30-500 |
300mm/11.81″ | 110mm/4.33″ | 30-500 |
320mm/12.60″ | 120mm/4.72″ | 30-500 |
330mm/12.99″ | 125mm/4.92″ | 30-500 |
350mm/13.78″ | 130mm/5.12″ | 30-500 |
360mm/14.17″ | 140mm/5.51″ | 30-500 |
380mm/14.96″ | 150mm/5.91″ | 30-500 |
400mm/15.75″ | 160mm/6.30″ | 30-500 |
420mm/16.54″ | 160mm/6.30″ | 30-500 |
450mm/17.72″ | 180mm/7.09″ | 30-500 |
480mm/18.90″ | 200mm/7.87″ | 30-500 |
500mm/19.69″ | 200mm/7.87″ | 30-500 |
520mm/20.47″ | 220mm/8.66″ | 30-400 |
550mm/21.65″ | 230mm/9.06″ | 30-400 |
600mm/23.62″ | 260mm/10.24″ | 30-400 |
Available Specification for M10 Rod Diameter |
||
Extended Length | Stroke | Force (N) |
200mm/7.87″ | 60mm/2.36″ | 50-1000N |
220mm/8.66″ | 70mm/2.76″ | 50-1000N |
250mm/9.84″ | 80mm/3.15″ | 50-1000N |
280mm/11.02″ | 100mm/3.94″ | 50-1000N |
300mm/11.81″ | 110mm/4.33″ | 50-1000N |
320mm/12.60″ | 120mm/4.72″ | 50-1000N |
350mm/13.78″ | 130mm/5.12″ | 50-1000N |
370mm/14.57″ | 145mm/5.71″ | 50-1000N |
390mm/15.35″ | 155mm/6.10″ | 50-1000N |
400mm/15.75″ | 160mm/6.30″ | 50-1000N |
420mm/16.54″ | 170mm/6.69″ | 50-1000N |
450mm/17.72″ | 180mm/7.09″ | 50-1000N |
470mm//18.50″ | 195mm/7.67″ | 50-1000N |
480mm/18.90″ | 195mm/7.67″ | 50-1000N |
500mm/19.69″ | 200mm/7.87″ | 100-1000N |
530mm/20.87″ | 220mm/8.66″ | 100-1000N |
550mm/21.65″ | 230mm/9.06″ | 100-1000N |
570mm/22.44″ | 240mm/9.45″ | 100-1000N |
600mm/23.62″ | 255mm/10″ | 100-1000N |
3) Select Quantity
Each custom quantity includes a piece of gas strut and 2 brackets. So, if you need a pair, select a quantity of 2.
4) Add To Cart and Check Out
5) Some Tips You Should Note
- Package: Screws and a paper mounting guide will not be included.
- About shipping and delivery time: Your order will be processed in 1-2 weeks, and we will offer free shipping. Generally, Delivery Time is 8-15 days.
- About Return and Refund: These products are customized and do not accept returns and refunds for any reason other than quality problems.
- Length Requirement: Extended Length greater than 600mm/23.62″ are available, but additional transportation fees are required, due to the high transportation cost.
